Ao Smith Ati 540H 100 Troubleshooting: Quick Fix Guide

Are you dealing with issues with your AO Smith ATI 540H 100 water heater? You’re not alone.

When your water heater starts acting up, it can disrupt your day and leave you searching for solutions. The good news? Troubleshooting doesn’t have to be overwhelming. By identifying the problem and following a few simple steps, you can often get your water heater back to working like new.

In this guide, we’ll walk you through the most common issues, what they mean, and how you can fix them. Whether it’s inconsistent water temperature, error codes, or low water pressure, we’ve got you covered. Stick around—you’ll gain the confidence to troubleshoot and resolve these problems quickly, saving you time, money, and frustration.

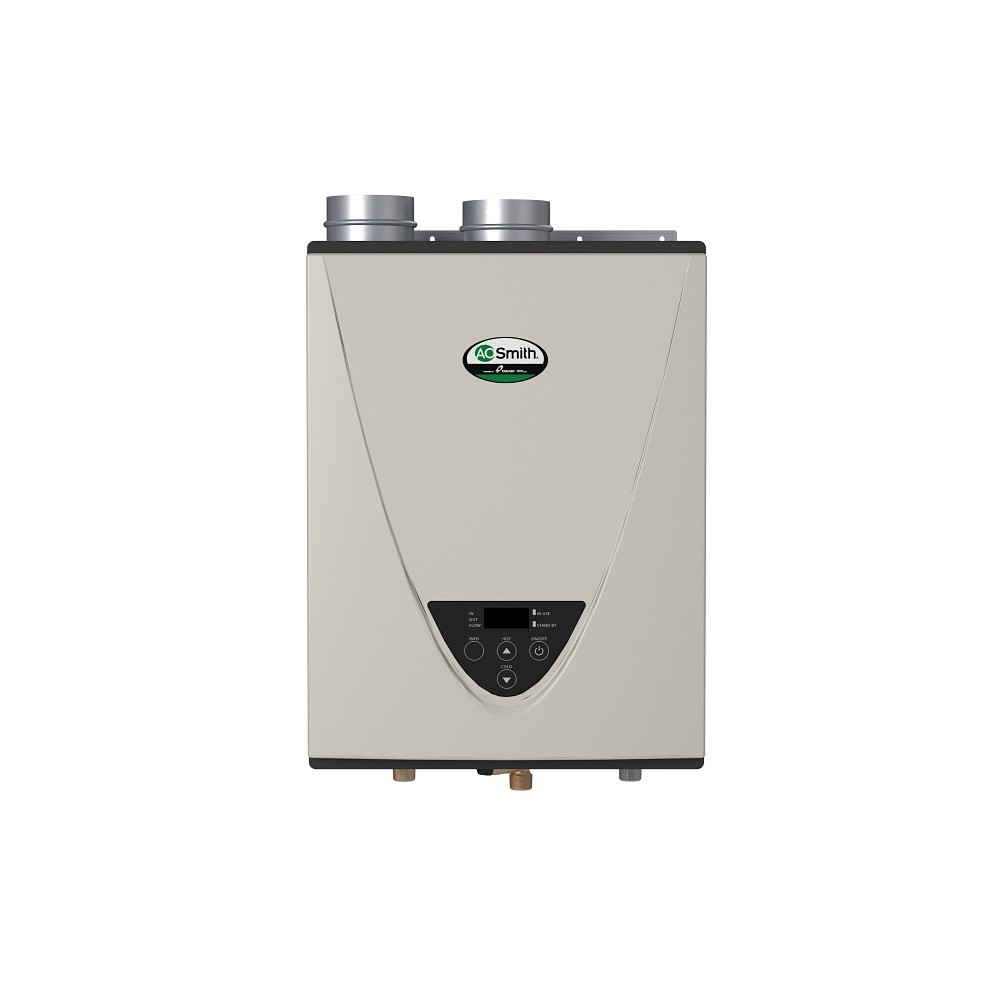

Ao Smith Ati 540H 100 Troubleshooting: Quick Fix Guide

Credit: www.hotwater.com

Common Error Codes

Understanding common error codes is vital for troubleshooting the AO Smith ATI 540H 100 water heater. The error codes provide helpful insights into the system’s issues. By recognizing these codes, you can quickly identify problems and address them effectively. This guide will focus on the most common error codes and how to interpret them.

Understanding The Display Panel

The display panel shows critical information about the water heater’s status. It serves as the main communication tool between you and the system. Error codes appear on this panel whenever the unit encounters an issue. The codes are usually displayed as a combination of letters and numbers. Knowing how to read these codes makes troubleshooting easier.

Pay attention to the display when the unit isn’t working as expected. A flashing error code signals the specific problem that needs attention. Always refer to the user manual for detailed descriptions of these codes.

Most Frequent Error Messages

Some error codes occur more often than others. One common code is “E001,” which indicates ignition failure. This might happen due to a gas supply issue or a dirty igniter. Another frequent code is “E003,” signaling a flame failure. It often means the burner isn’t properly igniting.

“E005” is another notable code, pointing to overheating. This may result from a blocked vent or a faulty sensor. Lastly, “E011” relates to fan motor issues, which can disrupt air circulation. Addressing these errors promptly ensures the system runs smoothly.

Ao Smith Ati 540H 100 Troubleshooting: Quick Fix Guide

Credit: www.hotwater.com

Low Water Flow Issues

Experiencing low water flow in your AO Smith ATI 540H can be frustrating. This issue might reduce the efficiency of your water heater. Understanding potential causes can help resolve the problem quickly. Below are key areas to inspect.

Checking The Water Supply

Ensure the main water supply to the unit is turned on fully. Low flow can occur if the water pressure is insufficient. Inspect the water pressure regulator for signs of malfunction. A faulty regulator might restrict water flow to the heater.

If your home’s plumbing system has low pressure, the heater won’t perform well. Contact your local plumber if you suspect a broader water pressure issue.

Inspecting Filters And Valves

Filters inside the water heater can become clogged over time. Check the inlet filter for dirt or debris buildup. Clean the filter gently to restore water flow.

Inspect all valves connected to the heater. A partially closed or damaged valve could limit water supply. Confirm that all valves are open and functioning properly.

Addressing Blockages

Blockages in pipes or fittings could restrict water flow. Sediment buildup in older pipes may cause this issue. Flush the pipes to clear any obstructions affecting water flow.

Examine the water heater’s internal pathways for blockages. Hire a professional technician for complex internal inspections. Regular maintenance can prevent future blockages in your system.

Heating Problems

If your AO Smith ATI 540H is not heating water as expected, it can be frustrating. Whether it’s lukewarm water or no heat at all, identifying the root cause is essential. Let’s break down the common issues and practical fixes to get your water heater back on track.

Temperature Settings Adjustments

Sometimes, the issue is as simple as incorrect temperature settings. Check your unit’s control panel and confirm the temperature is set to your desired level. The recommended range for most households is 120°F to 140°F.

If the water is still not hot enough, try increasing the temperature slightly. Avoid cranking it up too high, as it can lead to scalding or energy waste. Make small adjustments and test the water temperature after each change.

Thermostat Malfunction Solutions

A malfunctioning thermostat can disrupt your water heater’s performance. If the temperature settings seem correct but the water is still cold, the thermostat could be faulty. Inspect it for signs of damage or wear.

Replacing the thermostat is often a straightforward solution. You can find compatible thermostats online or at local hardware stores. If you’re unsure about the installation, consult a professional to avoid further complications.

Inspecting Burner And Heat Exchanger

If adjusting the settings and checking the thermostat doesn’t solve the issue, the problem might lie in the burner or heat exchanger. A dirty burner can reduce efficiency and lead to insufficient heating. Inspect it for debris or blockages.

Similarly, a clogged heat exchanger can restrict water flow and affect heating. Clean the heat exchanger using a soft brush or follow the manufacturer’s cleaning instructions. Regular maintenance can prevent these issues from recurring.

Heating problems don’t have to leave you in cold water. Start with the basics, like temperature adjustments, and work your way up to inspecting components. What steps will you take to restore your AO Smith ATI 540H’s performance?

Gas Supply Concerns

Gas supply concerns can cause significant issues with the performance of your A.O. Smith ATI 540H water heater. If the gas supply isn’t properly managed, you might experience inconsistent heating, error codes, or even a complete shutdown. Here’s how you can troubleshoot and resolve these issues efficiently, ensuring your water heater runs smoothly.

Ensuring Proper Gas Pressure

Gas pressure plays a critical role in how your water heater operates. Too low or too high, and the unit won’t perform as it should. Use a gas pressure gauge to measure the pressure at the inlet—your manual will specify the correct range.

If the pressure is off, contact your gas provider or a licensed technician. Don’t attempt to adjust the gas meter yourself; it’s both dangerous and likely against regulations. Always prioritize safety when dealing with gas systems.

Detecting And Fixing Leaks

Gas leaks are not just a performance issue—they’re a safety hazard. A simple way to detect leaks is by applying soapy water to the gas connections and looking for bubbles. If you smell gas or see bubbles, turn off the gas supply immediately.

Call a professional to repair any leaks. Avoid using any electrical devices near the area, as they could ignite the gas. Your safety and that of your household come first.

Resetting Gas Connections

Sometimes, improper gas connections can cause your water heater to malfunction. Ensure that all gas connections are secure and aligned according to the unit’s specifications. Loose or misaligned connections can lead to irregular performance.

If you’ve recently installed or moved the unit, double-check every connection. Gently reset or tighten them, but don’t force anything. If you’re unsure, a quick consultation with a professional can save you from future headaches.

Have you ever overlooked something as simple as a loose connection only to realize later that it was the root of the problem? Taking a few extra minutes to check can save you hours of frustration.

Electrical Component Failures

Electrical issues can cause the AO Smith ATI 540H 100 water heater to malfunction. Identifying faulty components is crucial for resolving performance problems. Addressing electrical failures early can prevent further damage and costly repairs.

This section will guide you through key electrical troubleshooting steps. Ensure safety by turning off the power before inspecting components.

Power Supply Checks

Start by confirming the water heater has power. Check the power outlet for voltage using a multimeter. Verify the plug is secure and the outlet is functioning. Inspect the power cord for damage or wear. Replace it if any cuts or exposed wires are visible.

If there’s no power, check your home’s electrical system. Ensure the outlet supplying power is active. Reset any tripped switches in the main breaker panel.

Fuses And Circuit Breaker Inspections

Inspect the fuse box or circuit breaker connected to the water heater. Look for blown fuses or tripped breakers. Replace damaged fuses with ones matching the specified amperage rating. Reset tripped breakers by flipping them off and on again.

If the fuse or breaker trips repeatedly, it signals an underlying electrical issue. This could be a short circuit or an overloaded system. Consult a professional electrician if the problem persists.

Troubleshooting The Control Board

The control board manages the water heater’s operations. Faulty control boards can disrupt heating performance. Examine the control board for visible signs of damage or burn marks. Use a multimeter to test the board’s electrical connections for continuity.

If the control board fails testing, it may need replacement. Ensure any replacement matches the model specifications. Incorrect control boards can lead to further operational issues.

Maintenance Tips

Regular maintenance keeps your Ao Smith ATI 540H 100 running efficiently. It prevents issues and extends the lifespan of the unit. Simple upkeep can save time and costly repairs in the future. Below are essential maintenance tips to ensure optimal performance.

Cleaning The Unit Regularly

Dirt and debris can collect on the unit over time. Clean the exterior with a soft, damp cloth to remove dust. Check the vents for blockages that may restrict airflow. Use a vacuum or brush to clear away dirt from the intake and exhaust vents. Avoid using harsh chemicals that might damage the surface or components.

Preventing Scale Build-up

Hard water can cause mineral deposits to form inside the unit. These deposits reduce efficiency and lead to potential damage. Use a water softener or descaling solution to prevent scale build-up. Flush the heat exchanger periodically to remove any accumulated minerals. Follow the manufacturer’s instructions for safe and effective descaling.

Scheduling Professional Servicing

Some maintenance tasks require a certified professional. Schedule annual inspections to ensure all components are functioning correctly. A technician can check for leaks, test gas connections, and inspect the heat exchanger. They can also update software or replace worn-out parts if needed. Routine servicing ensures your unit meets safety and efficiency standards.

When To Contact Support

Having trouble with your AO Smith ATI 540H 100 water heater? Knowing when to reach out for professional support can save time and prevent further damage. While some issues can be resolved independently, others require help from qualified technicians. This section will guide you on identifying critical situations, understanding warranty and repair options, and finding authorized technicians.

Identifying Critical Issues

Some problems need immediate attention from a professional. If your water heater leaks, shuts down frequently, or displays error codes you can’t resolve, these are critical signs. Issues like inconsistent water temperature or unusual noises often point to internal damage. Address these problems quickly to prevent further complications.

If troubleshooting doesn’t fix the problem, this suggests deeper issues. Avoid attempting repairs if you’re unsure about the cause. Incorrect handling can void the warranty or worsen the damage.

Warranty And Repair Options

Check your warranty for repair coverage before contacting support. AO Smith offers warranties for specific components, which could save repair costs. Ensure you have your purchase details and warranty documentation ready. This speeds up the process when discussing options with the support team.

Ask if the issue falls under the warranty terms. If covered, they may offer free repairs or replacements. Always clarify warranty limitations to avoid unexpected charges.

Locating Authorized Technicians

Authorized technicians are trained to repair AO Smith products effectively. Use the company’s website or support hotline to find certified professionals near you. Always confirm the technician’s credentials before scheduling service.

Authorized service ensures proper repairs without voiding your warranty. It also guarantees that genuine parts are used during replacements. Avoid using unlicensed technicians for major fixes.

Ao Smith Ati 540H 100 Troubleshooting: Quick Fix Guide

Credit: www.reddit.com

Conclusion

Troubleshooting the AO Smith ATI 540H 100 can feel overwhelming at first. But with clear steps, most issues are easy to resolve. Regular maintenance helps prevent common problems and ensures better performance. Always refer to the user manual for guidance.

For complex issues, contacting a professional is the safest option. Keeping your water heater in good shape saves time and money. Follow the tips shared in this guide to address problems effectively. Stay proactive, and your water heater will serve you well for years.

Reliable performance starts with proper care and attention.
