Briggs And Stratton Magneto Troubleshooting: Expert Guide & Tips
Is your Briggs and Stratton engine not starting? The magneto might be the issue.
Troubleshooting a magneto can seem complicated, but it’s manageable with the right guidance. Briggs and Stratton engines are known for their reliability. Sometimes, though, even the best engines face issues. One common problem is the magneto, which is vital for creating the spark needed to start the engine.
If your engine is misfiring or won’t start, the magneto could be the culprit. Understanding how to troubleshoot and fix magneto problems can save you time and money. In this guide, we’ll explore common magneto issues and provide simple steps to diagnose and repair them. Whether you’re a novice or experienced, this guide will help you get your engine running smoothly again.
Introduction To Magneto Troubleshooting
The magneto is a crucial part of Briggs and Stratton engines. It generates the spark for ignition. Understanding its function helps in troubleshooting issues. This guide will help you identify and fix common magneto problems.
Importance Of Magneto In Engines
The magneto generates the electric current needed for the spark plug. This spark ignites the fuel-air mixture in the engine. Without a working magneto, the engine won’t start or run smoothly. Regular maintenance of the magneto ensures engine reliability and performance.
Common Magneto Issues
Magnetos can face several issues over time. Dirt and debris can block the magneto, preventing it from working. Worn-out or damaged parts can also cause failures. Another common problem is a weak spark, which results from internal faults.
Checking for corrosion is essential. Corrosion can disrupt the magneto’s performance. Regular inspection and cleaning help prevent these issues. Replacing faulty parts ensures the magneto works effectively.

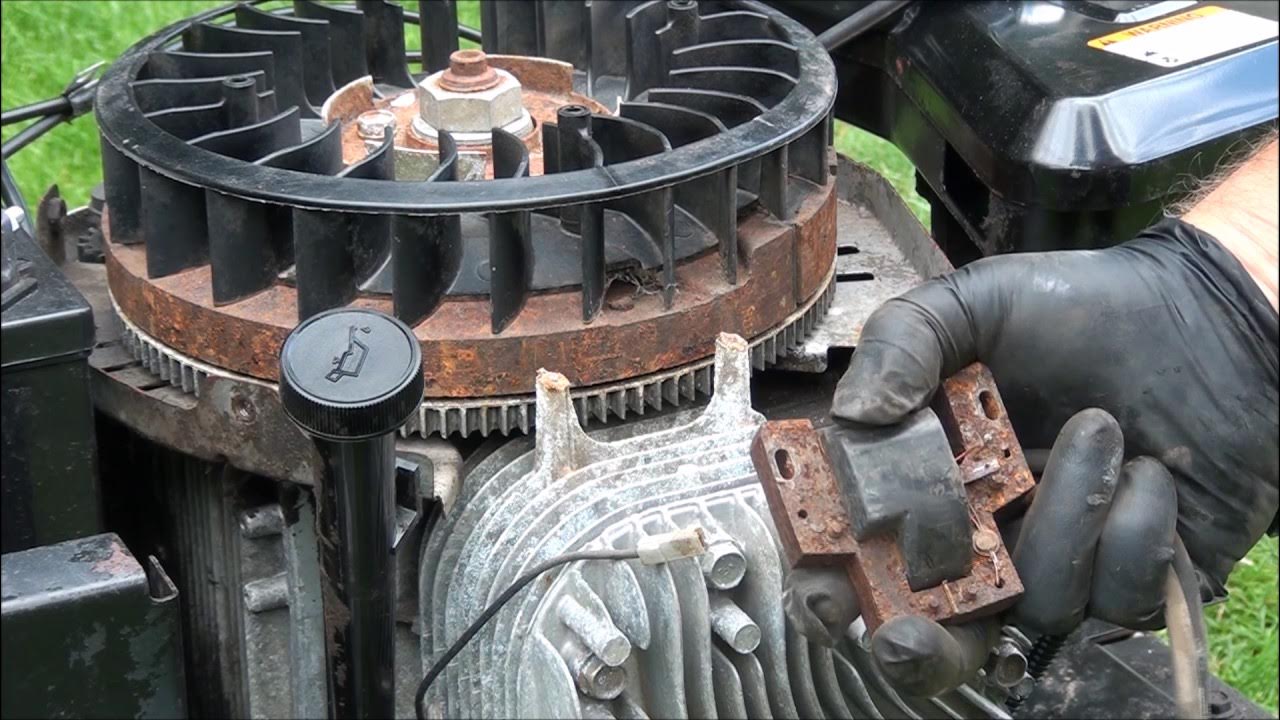

Credit: www.youtube.com
Identifying Symptoms
Identifying symptoms of a faulty Briggs and Stratton magneto can help prevent bigger issues. Understanding these symptoms will guide you in troubleshooting and fixing the problem. Below are common symptoms to watch for.
Engine Won’t Start
One of the most obvious signs is the engine not starting. You may pull the starter cord multiple times without success. This can be due to no spark being generated. Check the magneto and ensure all connections are secure.
Engine Runs Rough
If the engine runs rough, the magneto could be the cause. The engine might sputter or misfire. This indicates inconsistent spark delivery. Inspect the magneto for any visible damage or wear.
Intermittent Sparking
Intermittent sparking is another symptom. The engine may start and run, then suddenly stall. This irregular spark can make diagnosing tricky. Look for frayed wires or loose connections in the magneto.
Preliminary Checks
Before diving into the complex issues, performing some preliminary checks on your Briggs and Stratton magneto can save time. These basic inspections help identify common problems and ensure the magneto functions correctly. Let’s explore the essential steps for troubleshooting, starting with the spark plug.
Inspecting Spark Plug
Begin by removing the spark plug and inspecting it closely. Look for signs of wear, such as a worn electrode or heavy deposits. A clean and functional spark plug is vital for the ignition system.
- Check for carbon buildup or oil fouling.
- Ensure the electrode gap is within the specified range.
- Replace the spark plug if it appears damaged or excessively dirty.
Use a spark plug tester to verify if the plug is generating a strong spark. If the spark is weak or nonexistent, the issue may lie with the ignition coil or wiring.
Checking Ignition Coil
The ignition coil plays a crucial role in the magneto system. To check its functionality, follow these steps:
- Disconnect the coil wire from the spark plug.
- Use a multimeter to measure the resistance of the coil.
- Compare the reading with the manufacturer’s specifications.
If the resistance is outside the specified range, the ignition coil may need replacement. A faulty coil can prevent the magneto from generating the necessary spark.
Examining Wiring
Damaged or loose wiring can disrupt the magneto’s operation. Carefully inspect all wiring connections:
| Check | Action |
|---|---|
| Loose connections | Tighten all connections securely. |
| Frayed wires | Repair or replace damaged wiring. |
| Corrosion | Clean corroded terminals with a wire brush. |
A thorough inspection of the wiring ensures that the electrical current flows correctly, supporting the magneto’s function.
Credit: www.youtube.com
Testing The Magneto
Testing the magneto on a Briggs and Stratton engine helps diagnose ignition problems. A faulty magneto can prevent your engine from starting or running well. Let’s explore how to test the magneto using some simple tools.
Using A Multimeter
A multimeter is a handy tool for testing the magneto. Set your multimeter to the ohms setting. This helps measure the resistance in the magneto coil. Disconnect the spark plug wire from the magneto. Place one multimeter probe on the magneto’s terminal. Place the other probe on the metal casing.
Checking For Continuity
Checking for continuity is the next step. Continuity means electricity can flow through the magneto. If the multimeter beeps, the magneto has continuity. This indicates that the internal wire is intact. If there is no beep, the magneto may have a broken wire.
Measuring Resistance
Measuring resistance helps determine the magneto’s condition. A good magneto will show a specific resistance value. Check your engine manual for the correct resistance range. If the reading is outside this range, the magneto may be faulty. Replace the magneto if needed.
Cleaning And Maintenance
Cleaning and maintaining your Briggs and Stratton magneto is vital for optimal performance. Regular upkeep can prevent many common issues. It also ensures your engine runs smoothly. Below, we delve into specific steps for cleaning and maintaining your magneto.
Cleaning Magneto Components
First, disconnect the spark plug wire. This prevents accidental starting. Remove the magneto cover to access internal parts. Use a clean cloth to wipe away any dirt or debris. For stubborn grime, use a soft-bristled brush. Ensure all parts are clean before reassembling.
Lubricating Moving Parts
Lubrication keeps the magneto’s moving parts functional. Apply a small amount of machine oil to the rotor and other moving components. Avoid over-lubricating. Excess oil can attract dirt and cause issues. Regular lubrication extends the life of your magneto.
Preventing Future Issues
To prevent future problems, store your engine in a dry place. Moisture can cause rust and corrosion. Regularly inspect and clean the magneto. Replace worn or damaged parts immediately. Keeping your magneto in good condition ensures reliable engine performance.
Credit: www.briggsandstratton.com
Replacing Faulty Parts
Replacing faulty parts in your Briggs and Stratton magneto can restore your engine’s performance. This process involves selecting the right parts, following a clear replacement guide, and testing the engine post-replacement. Let’s explore these steps in detail.
Choosing Replacement Parts
First, identify the exact parts that need replacement. Check your engine’s model number. Use this to find compatible parts. Look for high-quality replacements. They ensure better performance and longevity.
Step-by-step Replacement Guide
Begin by disconnecting the spark plug wire. This prevents accidental starts. Next, remove the engine cover using a screwdriver. Locate the magneto. It’s usually near the flywheel.
Unscrew the mounting bolts of the old magneto. Carefully take it out. Place the new magneto in the same position. Secure it with bolts. Ensure the air gap between the magneto and flywheel is correct. Use a feeler gauge for precision.
Reconnect the engine cover. Then, reattach the spark plug wire. Double-check all connections. Make sure everything is tight and secure.
Post-replacement Testing
Start the engine to test the new magneto. Listen for smooth operation. The engine should run without hiccups. Check for consistent spark at the spark plug.
Run the engine at various speeds. Ensure there’s no misfire. If the engine runs smoothly, the replacement was successful. If issues persist, recheck all connections. Adjust the air gap if needed.
Advanced Troubleshooting Tips
Briggs and Stratton engines are known for their reliability. Yet, issues with the magneto can occur. Troubleshooting these problems can be challenging. Here are advanced tips to help you diagnose and fix magneto issues effectively.
Using Diagnostic Tools
Diagnostic tools are essential for troubleshooting magneto issues. A multimeter can check the voltage and continuity. This helps identify faulty connections or components. An ignition spark tester can verify if the magneto is producing a spark. These tools provide accurate readings, making troubleshooting easier.
Consulting Service Manuals
Service manuals are valuable resources. They offer detailed diagrams and instructions. These manuals guide you through the troubleshooting process step-by-step. Understanding the magneto system’s layout and components is crucial. Service manuals also provide specifications for testing and replacement parts.
Seeking Professional Help
Sometimes, troubleshooting on your own may not resolve the issue. In such cases, seeking professional help is advisable. Experienced mechanics have the skills and knowledge to diagnose complex problems. They can also perform repairs that require specialized tools or expertise.
Preventive Measures
Troubleshooting a Briggs and Stratton magneto can be avoided through some simple preventive measures. Regular maintenance, proper storage techniques, and avoiding common mistakes can keep your magneto in top shape. Let’s explore these measures in detail.
Regular Maintenance Schedule
A regular maintenance schedule is crucial. Check the magneto and related components every few months. Look for signs of wear and tear. Replace damaged parts immediately. Keep the magneto clean. Dirt and debris can affect its performance.
Here’s a sample maintenance schedule:
| Task | Frequency |
|---|---|
| Inspect Magneto | Every 3 months |
| Clean Components | Every 6 months |
| Replace Worn Parts | As Needed |
Proper Storage Techniques
Store your equipment in a dry, cool place. Moisture can cause rust and damage the magneto. Use a cover to protect against dust. If storing for a long time, remove the magneto. Store it separately in a secure, dry container.
Avoid direct sunlight and extreme temperatures. This prevents degradation of materials. Proper storage extends the life of your magneto.
Avoiding Common Mistakes
Avoid common mistakes that can harm your magneto. Here are some tips:
- Do not over-tighten bolts.
- Use the correct tools for maintenance.
- Follow the manufacturer’s guidelines.
- Do not ignore minor issues.
Regular checks and proper handling can prevent problems. A small effort now saves time and money later.
Frequently Asked Questions
How Do I Check A Briggs And Stratton Magneto?
First, remove the spark plug. Then, use a multimeter to check resistance.
What Causes A Briggs And Stratton Magneto To Fail?
Common causes include dirt, wear, or a broken wire. Regular maintenance helps.
How Do I Test A Briggs And Stratton Coil?
Use a multimeter to check primary and secondary resistance. Compare to the manual’s specifications.
Why Is My Briggs And Stratton Engine Not Sparking?
Possible reasons include a faulty magneto, spark plug issues, or a bad ignition coil.
Can A Magneto Be Repaired?
Yes, but sometimes replacement is easier. Check for broken wires or worn parts first.
Conclusion
Understanding Briggs and Stratton magneto issues can save time and frustration. Proper maintenance ensures your engine runs smoothly. Regularly check for worn or damaged parts. Clean components to prevent buildup. Simple fixes often solve common problems. Follow our troubleshooting tips for a reliable engine.
Now, you can handle minor repairs with confidence. Keep your tools and parts organized. Stay patient and methodical. Your efforts will pay off in performance. Happy troubleshooting!
