Kawasaki Charging System Troubleshooting: Expert Tips and Solutions

Dealing with a faulty Kawasaki charging system can be frustrating. It often leads to dead batteries and unexpected breakdowns.

For motorcycle enthusiasts, the charging system is a crucial component. It keeps the battery charged and ensures all electrical systems function properly. When it fails, it can leave you stranded, miles away from home. Troubleshooting these issues can save you time and money.

This guide aims to simplify the process, making it easier to understand and fix common problems. So, if you’re tired of your Kawasaki letting you down, read on. We’ll help you get back on the road confidently.

Kawasaki Charging System Troubleshooting: Expert Tips and Solutions

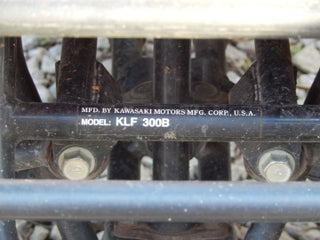

Credit: www.instructables.com

Common Charging System Issues

Experiencing problems with your Kawasaki charging system? These issues can cause headaches. Identifying the root cause is vital for a smooth ride. This section covers common charging system issues. Learn about battery problems, stator failures, and regulator/rectifier malfunctions.

Battery Problems

The battery is the heart of the charging system. A weak or dead battery can stop your bike. Check for corrosion on the terminals. Clean them if dirty. Ensure the battery holds a charge. A damaged battery needs replacing. Regular maintenance helps avoid battery issues.

Stator Failures

The stator generates electricity for your motorcycle. A faulty stator affects power supply. Test the stator using a multimeter. Look for burns or shorts in the wiring. A failed stator requires professional repair or replacement. Keep an eye on your bike’s performance. Early detection can prevent bigger problems.

Regulator/rectifier Malfunctions

The regulator/rectifier converts AC to DC voltage. It also maintains a steady charge. Check for overheating issues. Inspect the wiring for damage. Test the unit with a multimeter. Replace a faulty regulator/rectifier to ensure proper charging. Regular checks can keep your bike running smoothly.

Tools For Diagnosis

Diagnosing a Kawasaki charging system can be a daunting task without the proper tools. Understanding the key instruments for the job can make the process much easier. Below are some of the essential tools for diagnosis.

Multimeter Usage

A multimeter is a vital tool for testing electrical systems. It measures voltage, current, and resistance. To check the charging system, set the multimeter to the voltage setting. Connect the probes to the battery terminals. This will show you the battery voltage. A fully charged battery should read around 12.6 volts. When the engine runs, the reading should be between 13.8 and 14.5 volts. This indicates that the charging system is working correctly.

Voltage Regulator Testers

A voltage regulator tester checks the output of the voltage regulator. It ensures that it maintains the correct voltage level. First, connect the tester to the battery and the regulator. Start the engine and observe the readings. The voltage should stay within the specified range. If the readings fluctuate or fall outside the range, the regulator may be faulty. This tool helps pinpoint issues with the regulator quickly.

Continuity Testers

A continuity tester checks if there is a complete path for the current to flow. It is useful for testing wires and connections in the charging system. To use it, connect the tester’s probes to each end of the wire or connection. If the tester lights up or beeps, the connection is good. If it does not, there is a break in the circuit. This tool helps identify broken wires or poor connections, which can cause charging issues.

Battery Testing

Testing your Kawasaki’s battery is crucial for diagnosing charging system issues. This process helps identify if the battery is the root cause of problems. Follow these steps to ensure your battery is in good health.

Voltage Check

The first step is a voltage check. Use a multimeter to measure the battery’s voltage. Set the multimeter to DC volts. Connect the red probe to the positive terminal and the black probe to the negative terminal.

A healthy battery should read between 12.6 and 12.8 volts when fully charged. If the reading is below 12.4 volts, the battery may be undercharged. Recharge the battery and test again. If the voltage remains low, the battery may need replacement.

Load Test

Next, perform a load test. This test checks the battery’s ability to hold a charge under load. You will need a load tester for this step.

Connect the load tester to the battery terminals. Apply a load equal to half of the battery’s cold cranking amps (CCA) rating. Hold the load for 15 seconds. Observe the voltage during the test.

A healthy battery should maintain a voltage above 9.6 volts during the load test. If the voltage drops below this, the battery may be weak and require replacement.

Connection Inspection

Inspect the battery connections for any signs of corrosion or looseness. Corroded or loose connections can cause charging issues.

  • Check the battery terminals for any white or greenish buildup.
  • Ensure all connections are tight and secure.
  • Clean the terminals with a wire brush if corrosion is present.

After cleaning, apply a small amount of dielectric grease to the terminals. This prevents future corrosion and ensures a good connection.

Step Description
Voltage Check Measure battery voltage with a multimeter.
Load Test Test battery under load with a load tester.
Connection Inspection Check and clean battery connections.
Kawasaki Charging System Troubleshooting: Expert Tips and Solutions

Credit: www.instructables.com

Stator Inspection

Inspecting the stator is crucial in troubleshooting the Kawasaki charging system. The stator generates the electrical power for the bike. If it fails, the battery won’t charge, leading to various issues. Follow these steps for a comprehensive stator inspection.

Visual Examination

Start with a visual examination. Look for obvious signs of damage. Check for burnt coils, disconnected wires, and corrosion.

  • Inspect the stator for burnt or darkened areas.
  • Ensure all wires are securely connected.
  • Check for any signs of corrosion or rust.

If you find any of these issues, the stator may need replacement.

Resistance Measurement

Next, perform a resistance measurement. Use a multimeter to check the resistance between the stator wires.

  1. Set your multimeter to the ohms (Ω) setting.
  2. Measure resistance between each pair of the three stator wires.

The resistance values should be close to each other. Refer to the Kawasaki manual for the exact range.

Output Voltage Test

Finally, conduct an output voltage test. This test ensures the stator produces the correct voltage.

  1. Set your multimeter to AC voltage.
  2. Start the bike and let it idle.
  3. Measure the voltage between each pair of stator wires.

The voltage should increase with engine speed. Consult the manual for specific voltage values.

If the voltage is low or inconsistent, the stator may be faulty.

Regulator/rectifier Assessment

The regulator/rectifier is a critical component in your Kawasaki’s charging system. It converts AC voltage from the stator to DC voltage. This powers your bike’s electrical components. Assessing the regulator/rectifier ensures your bike runs smoothly.

Heat Sink Inspection

Start by inspecting the heat sink. The heat sink cools the regulator/rectifier. Look for any signs of damage or wear. This includes cracks, discoloration, or dirt buildup. A damaged heat sink can cause overheating and failure.

Heat Sink Condition Action
Clean and intact Proceed to next step
Dirty or damaged Clean or replace

Diode Test

Next, perform a diode test. Diodes control the flow of electricity in one direction. Use a multimeter set to the diode function.

  1. Disconnect the regulator/rectifier.
  2. Test each diode by placing the multimeter probes on the terminals.
  3. Record the readings. The multimeter should show a low reading in one direction and a high reading in the other.

Replace the regulator/rectifier if the readings are not within the expected range. Faulty diodes can lead to charging issues.

Output Voltage Verification

Finally, verify the output voltage. This step ensures the regulator/rectifier provides the correct voltage to the battery.

  • Connect the multimeter to the battery terminals.
  • Start the engine and let it idle.
  • Measure the voltage. It should be between 13.5 and 14.5 volts.

If the voltage is outside this range, the regulator/rectifier might need replacement. Proper voltage ensures your battery stays charged.

Wiring And Connections

The Kawasaki charging system relies heavily on its wiring and connections for optimal performance. Any interruption in this network can lead to charging issues. Ensuring that each wire and connector is in good condition is crucial. Below, we will discuss key steps in troubleshooting the wiring and connections of your Kawasaki charging system.

Connector Inspection

Start with a thorough connector inspection. Look at each connector for signs of wear or damage. A damaged connector can disrupt the flow of electricity.

  • Disconnect each connector one by one.
  • Check for any burnt marks or discoloration.
  • Ensure that the connectors fit tightly and securely.

Wire Continuity Check

Next, perform a wire continuity check. This step ensures that the wires are intact and electricity can flow through them without interruption.

  1. Use a multimeter set to continuity mode.
  2. Touch the probes to both ends of each wire.
  3. If the meter beeps, the wire is good. If not, there is a break.

Corrosion And Damage

Finally, inspect for corrosion and damage. Corroded or damaged wires can cause significant charging issues.

  • Look for any green or white buildup on the wires.
  • Check for frayed or exposed wires.
  • Clean any corrosion with a wire brush and replace damaged wires.

By performing these checks, you ensure that your Kawasaki charging system remains reliable and efficient.

Preventative Maintenance

Preventative maintenance is key for a reliable Kawasaki charging system. It helps avoid unexpected breakdowns and extends the lifespan of your bike. By following simple steps, you ensure your bike’s charging system stays in top shape.

Regular Battery Checks

Check your battery regularly. Ensure it holds a proper charge. Use a multimeter to test the voltage. A healthy battery should read around 12.6 volts when fully charged. If the reading is low, consider replacing the battery.

Inspect the battery terminals for corrosion. Clean them if necessary. Corrosion can hinder the charging process. Tighten the connections to prevent any loose contact. This simple step can save you from many issues.

Keeping Connections Clean

Clean connections are crucial for a smooth charging system. Dirt and grime can interfere with electrical flow. Use a wire brush to clean the terminals and connectors. Ensure there is no build-up on any connections.

Apply a dielectric grease to the connectors. It helps protect them from moisture and corrosion. Regular cleaning and maintenance of connections can prevent many charging issues.

Monitoring Charging Performance

Monitor your bike’s charging performance. Pay attention to the electrical system’s behavior. If you notice dimming lights or a weak battery, it might indicate a charging issue.

Use a voltmeter to check the charging voltage. The voltage should be around 13.5 to 14.5 volts while the engine is running. If the voltage is outside this range, there might be a problem with the charging system.

Regularly monitoring the charging performance helps catch problems early. It ensures your bike remains reliable and ready to ride.

Kawasaki Charging System Troubleshooting: Expert Tips and Solutions

Credit: www.southbayriders.com

When To Seek Professional Help

Troubleshooting a Kawasaki charging system can be challenging. Sometimes, seeking professional help is the best option. Knowing when to call an expert can save time and prevent further damage. Below are key situations where professional assistance is crucial.

Persistent Issues

If you have tried basic troubleshooting and the problem persists, it’s time to seek professional help. Persistent issues could mean deeper problems within the system. Experts can diagnose and fix what you might miss.

Signs Possible Causes
Battery not charging Faulty alternator or regulator
Frequent battery replacements Electrical short or parasitic drain

Complex Electrical Problems

Kawasaki systems can have complex electrical issues. If you see signs of wiring problems, such as flickering lights or blown fuses, call a professional. They have tools and knowledge to handle complex electrical diagnostics.

  • Intermittent charging
  • Sparks or burning smells
  • Multiple failed components

Warranty Considerations

Always check your warranty before attempting to fix the system yourself. DIY repairs can void the warranty. Professional services ensure the warranty remains intact.

Here’s a quick reference:

  1. Read warranty terms
  2. Identify authorized service providers
  3. Keep all service records

Using authorized professionals ensures your Kawasaki remains under warranty protection.

Frequently Asked Questions

What Are Common Issues In Kawasaki Charging Systems?

Common issues include dead batteries, faulty regulators, and broken stators.

How Do I Test My Kawasaki Stator?

Use a multimeter. Check for continuity and appropriate voltage output.

Why Is My Kawasaki Battery Not Charging?

Possible reasons: faulty stator, bad regulator, or loose connections.

How Can I Fix A Kawasaki Charging Problem?

Check and replace faulty parts like the stator, regulator, or battery.

What Tools Are Needed For Kawasaki Charging System Troubleshooting?

You need a multimeter, basic hand tools, and a service manual.

Conclusion

Diagnosing Kawasaki charging issues requires patience and basic knowledge. Always start with a thorough visual inspection. Check connections, fuses, and battery health. Use a multimeter to test voltage. Follow the steps methodically. This ensures you identify the problem correctly. Regular maintenance prevents future issues.

Keep your Kawasaki running smoothly by staying proactive. Troubleshooting doesn’t have to be daunting. With these tips, you can handle it.
