Are you frustrated because your paint sprayer just won’t cooperate? Whether your sprayer won’t spray, is losing pressure, or the nozzle keeps clogging, these problems can stop your project in its tracks.
But don’t worry—most paint sprayer issues are easier to fix than you think. In this guide, you’ll discover simple troubleshooting tips that get your sprayer working smoothly again. Keep reading, and you’ll save time, avoid costly repairs, and finish your painting job with confidence.
Your perfect spray finish is just a few easy steps away!
Credit: atanahaeventcenter.com
Common Sprayer Issues
Paint sprayers can face various issues that stop them from working well. Knowing common problems helps fix them fast. This keeps your project on track and saves time. Below are frequent troubles and simple ways to check them.
No Paint Flow
No paint flow means the sprayer does not release any paint. This can happen if the paint container is empty or if the tube is loose. Check if the paint cup has enough paint. Make sure the suction tube is fully inside the paint. Also, inspect the pump and trigger for damage or blockages.
Clogged Nozzle
A clogged nozzle blocks paint from spraying smoothly. Paint dries inside the nozzle and stops flow. Remove the nozzle and soak it in warm water or a vinegar mix. Use a pin or toothpick to clear small holes. Flush the nozzle by spraying water or solvent upside down. This removes any stuck paint bits.
Loss Of Pressure
Loss of pressure makes the spray weak or uneven. Check if the air compressor or pump is working properly. Look for leaks in hoses and seals. Tighten any loose connections. Clean or replace filters that may be dirty. A worn pump part can also cause low pressure and may need repair.

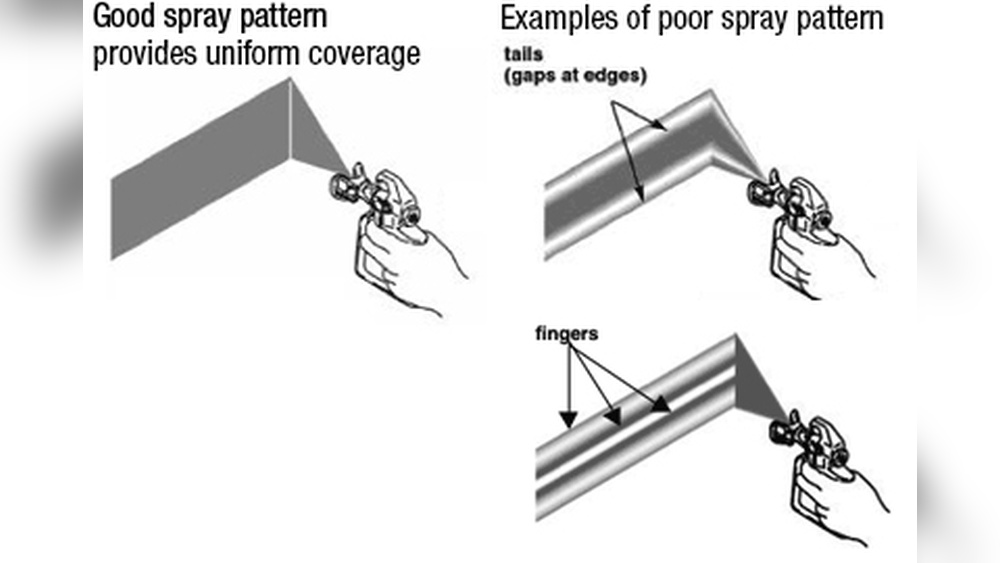

Uneven Spray Patterns
Uneven spray patterns cause blotchy or streaky paint jobs. This can result from a dirty or damaged nozzle. Clean the nozzle thoroughly or replace it if worn out. Check the paint consistency; paint that is too thick or thin sprays poorly. Adjust the spray angle and distance for better coverage.
Nozzle Cleaning Tips
Keeping your paint sprayer nozzle clean is key to smooth painting and perfect finishes. Clogs cause uneven spray and waste paint. Regular cleaning saves time and money. Follow these simple tips to clear blockages fast and keep your sprayer ready for action.
Soaking Solutions
Remove the nozzle from the sprayer carefully. Soak it in warm water mixed with white vinegar for 15 to 30 minutes. This helps dissolve dried paint and mineral deposits. For oil-based paints, use mineral spirits or lacquer thinner instead. Avoid harsh chemicals that can damage the nozzle parts.
Clearing The Spray Hole
After soaking, use a pin, needle, or toothpick to gently clear the spray hole. Do not force or enlarge the hole. Work slowly to remove any loose debris. Be careful to avoid bending or breaking the nozzle tip. Rinse with warm water to wash away loosened particles.
Flushing Techniques
Flush the nozzle by running warm water or the correct solvent through it. Attach the nozzle back to the sprayer and spray upside down into a sink or container. Pump the trigger several times to push out any remaining clog. Repeat if needed until the spray flows evenly again.
Preventing Future Clogs
Clean the nozzle after every use before paint dries inside. Use strainers to filter paint before pouring into the sprayer. Store the sprayer and nozzle in a clean, dry place. Regular maintenance reduces buildup and keeps your paint sprayer working longer.
Aerosol Can Fixes
Aerosol cans are a popular choice for quick and easy paint jobs. Sometimes, their spray nozzles get blocked or clogged. This stops the paint from coming out smoothly. Fixing these issues helps save money and avoids waste. Simple steps can restore your aerosol can’s spray function fast. Follow these tips to keep your paint sprayer working well.
Clearing Blocked Nozzles
Start by removing the nozzle carefully. Soak it in warm water or a vinegar solution. This helps soften and break down dried paint or debris. Use a thin pin or toothpick to clear the spray hole gently. Avoid forcing the nozzle to prevent damage. After cleaning, rinse it under hot water. Spray the can upside down for a few seconds. This helps push out any remaining blockages.
Proper Soaking Methods
Soaking the nozzle is key to removing tough clogs. Use warm water mixed with equal parts white vinegar. Let the nozzle soak for 15 to 30 minutes. For paint or adhesive sprays, use the right solvent. Mineral spirits or lacquer thinner works well for these. Soak the nozzle in the solvent for 10 to 20 minutes. Always wear gloves and work in a well-ventilated area. After soaking, rinse the nozzle thoroughly before reattaching.
Nozzle Maintenance
Regular nozzle care prevents future clogs. Clean the nozzle after each use by spraying clear water or solvent. Store the can with the nozzle attached but spray a short burst to clear paint inside. Check the spray hole for any buildup or residue often. Replace damaged nozzles immediately to maintain spray quality. Keep spare nozzles handy for quick swaps during projects.
Storage Tips
Proper storage extends the life of your aerosol cans. Store cans in a cool, dry place away from direct sunlight. Avoid freezing temperatures that can damage paint quality. Always keep the nozzle clean and attached. Store cans upright to prevent leaks or clogging. If storing for a long time, spray a small burst to clear the nozzle before sealing. This helps keep the nozzle ready for the next use.
Credit: www.youtube.com
Pump Mechanism Care
The pump mechanism is the heart of any paint sprayer. Proper care keeps it working smoothly and avoids costly repairs. Neglect can cause leaks, pressure loss, and uneven spraying. Regular maintenance extends the pump’s life and improves performance.
Seal Inspection
Seals prevent paint and air from leaking out of the pump. Check seals often for cracks or wear. Replace any damaged seals to maintain proper pressure. A tight seal means consistent spray and less mess.
Lubricating Moving Parts
Moving parts inside the pump need lubrication to reduce friction. Use the recommended lubricant for your sprayer model. Apply it to pistons, rods, and bearings regularly. Well-lubricated parts move smoothly and last longer.
Replacing Worn Components
Over time, parts like valves and pistons wear down. Inspect these components during routine care. Swap out worn pieces promptly to prevent bigger damage. Using fresh parts keeps the pump efficient and reliable.
Tube And Valve Checks
Checking the tubes and valves is key to fixing paint sprayer problems. These parts control how paint moves through your sprayer. Dirt, damage, or wrong setup can block paint flow. Careful inspection and cleaning help keep your sprayer working well.
Suction Tube Positioning
The suction tube must reach the paint bottom inside the container. If it is too short, air will enter, causing sputtering. Too long and it might bend or clog. Adjust the tube length to fit snugly without kinks. Secure it firmly to avoid leaks during spraying.
Inlet Strainer Cleaning
The inlet strainer filters paint before it enters the sprayer. Paint particles and debris can clog it quickly. Remove the strainer and rinse it with water or solvent. Use a soft brush to clear stubborn dirt. Never spray without the strainer, as this can damage the sprayer parts.
Valve Function Testing
Valves control paint flow and pressure. Test the valves by pressing the trigger and watching paint flow. If the flow is uneven or stops, the valve may be stuck or dirty. Clean the valve parts carefully with solvent. Replace any damaged valves to restore proper function.
Pressure Troubleshooting
Pressure problems often cause paint sprayers to perform poorly. Low or inconsistent pressure can lead to uneven paint coverage and wasted material. Pressure troubleshooting helps identify and fix these issues quickly. Keeping steady pressure ensures smooth, professional results every time.
Re-pressurizing Techniques
Start by checking the sprayer’s pressure settings. Adjust the regulator to increase pressure gradually. Pump the handle several times if your model uses manual pumping. This action builds up pressure in the system. Make sure all valves are fully open to allow proper flow. Tighten any loose connections to avoid leaks that reduce pressure.
Using Warm Water To Restore Flow
Warm water can help clear blockages inside the sprayer. Detach the nozzle and soak it in warm water for 10-15 minutes. This softens dried paint or debris clogging the spray tip. After soaking, flush the sprayer with warm water to remove loosened particles. This simple step restores smooth flow and improves pressure.
When To Replace Parts
Inspect the hose, nozzle, and seals for cracks or wear. Worn parts cause pressure drops and spray problems. Replace damaged hoses and cracked nozzles immediately. Also, change seals and gaskets if they appear brittle or misshaped. Using fresh parts keeps your sprayer running at optimal pressure and prevents future issues.
Material-specific Tips
Different materials require unique care to keep your paint sprayer working well. Understanding how to handle specific substances helps avoid damage and clogs. Follow these material-specific tips to solve common paint sprayer issues fast.
Solvents For Paints
Choose the right solvent for your paint type. Water-based paints need water or mild soap for cleaning. Oil-based paints require mineral spirits or paint thinner. Always soak the nozzle in the correct solvent to remove paint residue. Avoid mixing solvents to prevent damage to your sprayer parts.
Handling Adhesives
Adhesives can quickly clog your spray nozzle. Use warm water or a mild detergent to clean water-based adhesives. For stronger adhesives, apply a solvent like acetone carefully. Soak the nozzle thoroughly before trying to spray again. Clean the tube and pump to keep the adhesive from building up inside.
Dealing With Mineral Deposits
Mineral deposits block the spray pattern and reduce pressure. Soak sprayer parts in a solution of equal parts white vinegar and warm water. Let them sit for at least 30 minutes. Use a pin or needle to clear small holes and passages. Rinse with hot water before reassembling your sprayer.
Credit: www.youtube.com
Frequently Asked Questions
How To Fix A Spray Nozzle That Won’t Spray?
Soak the nozzle in warm water or solvent to dissolve clogs. Clear openings with a pin. Pump upside down to flush. Check tube connections and seals. Lubricate moving parts if needed. Repeat until spray flows smoothly.
What Would Cause Paint Not To Come Out In A Sprayer?
Paint may not come out if the inlet strainer clogs, the suction tube isn’t submerged, the paint pail is empty, or the inlet valve is stuck.
How To Fix A Spray Paint That Won’t Spray?
Soak the nozzle in warm water or solvent to dissolve clogs. Clear with a pin. Spray upside down to flush. Check tube connection and pump seals. Replace worn parts if needed.
Why Is My Paint Sprayer Leaving Tails?
Tails form when the spray nozzle clogs or pressure fluctuates. Clean the nozzle and maintain steady pressure for smooth spraying.
Why Is My Paint Sprayer Not Spraying Paint?
A clogged nozzle or air bubble often blocks paint flow. Clean the nozzle and check fluid tubes for blockages or leaks.
Conclusion
Troubleshooting paint sprayers need not be hard or frustrating. Small clogs and loose connections cause most problems. Cleaning nozzles with warm water or vinegar helps clear blockages. Always check tubes and pumps for tight fits and damage. Using the right solvent for your sprayer type makes cleaning easier.
Regular maintenance keeps your sprayer working smoothly and extends its life. With patience and care, you can fix most issues yourself. Keep these tips handy for your next painting project.
