Square Baler Knotter Troubleshooting: Ultimate Fix Guide

Square balers are essential for efficient hay baling. Yet, their knotters can occasionally malfunction, leading to frustration. Whether it’s a missed knot, twine issues, or mechanical failures, these problems can disrupt your workflow. Understanding common knotter issues and learning how to troubleshoot them is crucial.

This guide will walk you through typical knotter problems and offer practical solutions. By the end, you’ll feel more confident in maintaining your baler’s performance, ensuring smooth and productive baling operations. Let’s dive into the world of square baler knotter troubleshooting and keep your equipment running smoothly.

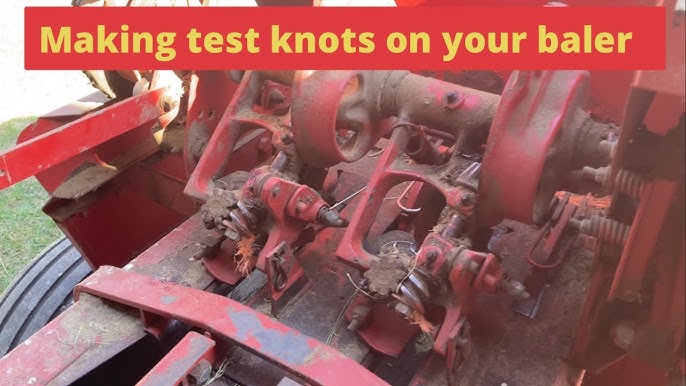

Credit: www.youtube.com

Introduction To Square Baler Knotters

Square baler knotters are essential components in baling equipment. They tie the twine around the bales, ensuring they stay intact. Understanding how these knotters work is vital for efficient baling. Knowing how to troubleshoot common issues can save time and money.

Importance Of Knotters

Knotters play a crucial role in the baling process. They ensure that bales are securely tied. Without properly functioning knotters, bales can fall apart. This can lead to wasted time and effort. Reliable knotters improve baling efficiency and productivity. They ensure that bales are easy to handle and transport.

Common Issues

Several issues can affect knotter performance. One common problem is missed knots. This occurs when the knotter fails to tie the twine correctly. Another issue is twine breakage. This can happen due to incorrect tension or worn-out parts. Twine feeding problems can also occur. This can result from dirt or debris in the knotter mechanism.

Regular maintenance can prevent many of these issues. Cleaning and inspecting the knotter parts is crucial. Replacing worn-out components can also help. Proper adjustment of the tension settings is important. This ensures the twine is neither too tight nor too loose. Following these steps can keep your knotters in good working order.

Tools And Safety Precautions

Maintaining your square baler knotter is essential for efficient hay baling. Knowing the right tools and safety precautions can prevent accidents and ensure the job gets done correctly. This section covers the essential tools and safety measures needed for troubleshooting your baler knotter.

Essential Tools

Having the right tools is crucial for troubleshooting your square baler knotter. A basic toolset includes wrenches, pliers, and screwdrivers. These tools help you tighten or loosen parts easily. A knotter hook is also necessary to thread the twine correctly.

You might also need a knife for cutting twine and a file for sharpening. Carry a flashlight for inspecting parts in low-light conditions. A can of lubricant helps keep moving parts running smoothly.

Safety Measures

Safety should always come first when working on your baler knotter. Always turn off the machine and remove the key before starting any work. This ensures the machine won’t start unexpectedly.

Wear gloves to protect your hands from sharp edges and hot surfaces. Safety glasses shield your eyes from debris and dust. Avoid loose clothing that could get caught in moving parts.

Keep a first aid kit nearby for any minor injuries. Work in a well-lit area to see clearly and avoid mistakes. Following these safety measures will help you troubleshoot your baler knotter safely and effectively.

Diagnosing Knotter Problems

Diagnosing knotter problems in a square baler can be tricky. Knotter issues can cause delays and reduce productivity. This guide will help you identify and fix common knotter problems.

Visual Inspection

Start with a thorough visual inspection of the knotter components. Look for wear and tear. Check for broken parts. Ensure all components are in their correct positions.

• Inspect the twine discs for smooth operation.
• Check the billhook for any signs of damage or dirt.
• Ensure the twine knife is sharp and free of debris.

Use a flashlight to see small parts clearly. Look for foreign objects that may cause blockages.

Common Symptoms

Identifying the symptoms can help diagnose the problem faster. Here are some common issues:

Symptom	Possible Cause
Knots not forming	Twine tension is incorrect or twine path is blocked
Loose knots	Worn twine discs or billhook tension is too low
Twine breaking	Twine knife is dull or twine is of poor quality

By focusing on these common symptoms, you can narrow down the cause of knotter problems.

Regular maintenance and timely inspections can prevent many of these issues. Keep your knotter clean and well-lubricated.

Credit: www.youtube.com

Knotter Timing Issues

Knotter timing issues in square balers can cause significant problems. Proper timing ensures that the knotter functions efficiently. Incorrect timing can lead to missed knots, broken strings, and other issues. Understanding the symptoms and knowing how to adjust the timing can save time and frustration.

Symptoms Of Timing Problems

One common symptom is missed knots. The knotter may fail to tie knots consistently. Another symptom is broken strings. This can happen if the knotter engages too early or too late. You may also notice uneven bale shapes. Proper timing ensures uniform bales.

Adjusting The Timing

First, check the operator’s manual. It provides detailed timing instructions. Ensure the knotter components are clean and lubricated. Dirt and debris can affect timing. Next, align the knotter components with the timing marks. These marks guide you in setting the correct timing.

Turn the flywheel by hand. This helps you observe the knotter’s movements. Adjust the timing mechanism if needed. Small adjustments can make a big difference. Test the baler after making changes. Ensure it ties knots correctly and consistently. Regular maintenance can prevent timing issues.

Twine Tension Problems

Twine tension problems are common in square balers. These issues can disrupt the baling process. Ensuring the right tension is crucial for smooth operation. Incorrect tension can lead to broken knots or loose bales. Learning to identify and correct these problems is essential. Let’s dive into the key aspects of twine tension.

Identifying Tension Issues

First, check the knotter system for twine tension. Look at the knots. Are they too tight or too loose? Tight knots might break the twine. Loose knots can cause bales to fall apart. Examine the twine path. Make sure it is free of obstructions. Watch the knotter in action. Note any irregularities in the twine movement. These signs indicate tension issues.

Correcting Tension

Adjust the tension settings on the baler. Each baler model has specific adjustments. Refer to the manual for guidance. Tighten or loosen the tension as needed. Test the knots after making adjustments. Continue this process until the tension is correct. Consistent, firm knots are the goal.

Maintain the twine path. Ensure it is smooth and clean. Dirt or debris can affect tension. Regular maintenance prevents these issues. Keep an eye on the twine quality. Poor-quality twine can cause tension problems. Choose twine that matches the baler’s specifications. Proper tension ensures efficient baling.

Worn Or Damaged Parts

Worn or damaged parts in a square baler knotter can cause many issues. Identifying and fixing these parts can keep your baler running smoothly. This section will help you understand how to recognize worn parts and replace them effectively.

Recognizing Worn Parts

Worn parts often show visible signs of damage. Look for cracks, rust, or excessive wear. Regular inspections can help you catch problems early.

• Needles: Check for bends or breaks. The needles should move smoothly.
• Twine Discs: Inspect for grooves or rough spots. Smooth discs ensure proper twine grip.
• Bill Hooks: Look for nicks or wear. These should be sharp and clean.

A table can help you track the condition of different parts:

Part	Condition	Action Needed
Needles	Worn	Replace
Twine Discs	Smooth	None
Bill Hooks	Nick	Sharpen

Replacing Components

Replacing worn components can prevent breakdowns. Follow these steps to replace parts:

1. Identify the worn part.
2. Refer to the baler manual for part numbers.
3. Purchase the correct replacement part.
4. Use proper tools for the replacement.
5. Test the baler after replacement.

Always use genuine parts for replacements. This ensures compatibility and longevity.

Cleaning And Maintenance

Keeping your square baler knotter in top shape requires regular cleaning and maintenance. Proper upkeep ensures smooth operation and extends the life of your equipment. Below, we break down essential steps for routine cleaning and preventative maintenance.

Routine Cleaning

Regular cleaning of the knotter is essential. Remove debris and dust that accumulate during baling. Follow these steps:

• Turn off the baler and disconnect it from the power source.
• Use a brush or compressed air to clean the knotter area.
• Check for and remove any twine or hay residue.
• Inspect the knotter for any visible wear or damage.

Perform these steps after each use. Keeping the knotter clean helps prevent malfunctions.

Preventative Maintenance

Performing regular preventative maintenance helps avoid unexpected breakdowns. Follow these guidelines:

1. Lubricate moving parts: Apply grease to the knotter components as recommended in the manual.
2. Check tension: Ensure the twine tension is set correctly. Adjust as needed.
3. Inspect the bill hook: Look for wear and replace if necessary.
4. Examine the knife arm: Ensure it is sharp and free from nicks.

Additionally, schedule a thorough inspection at least once a season. This proactive approach keeps your baler running smoothly.

Maintenance Task	Frequency	Tools Required
Cleaning	After each use	Brush, Compressed Air
Lubrication	Weekly	Grease Gun
Twine Tension Check	Monthly	Wrench
Bill Hook Inspection	Seasonally	Visual Inspection
Knife Arm Sharpening	Seasonally	Sharpening Tool

By following these tips, you ensure your baler knotter stays in excellent working condition. This proactive care saves time and money in the long run.

Credit: www.greentractortalk.com

Expert Tips And Tricks

Maintaining a square baler knotter is crucial for efficient operations. Knowing the best tips and tricks can save time and reduce frustration. Below are some expert suggestions for troubleshooting common issues with square baler knotters.

Pro Tips

Regular maintenance is key to a smooth-running knotter. Follow these pro tips to keep your knotter in top shape:

• Lubricate: Ensure all moving parts are well-lubricated to prevent wear.
• Inspect: Regularly check for worn or damaged parts. Replace them promptly.
• Adjust: Fine-tune the tension on the twine to ensure tight, secure knots.

Using high-quality twine can also make a big difference. Cheap twine often leads to more frequent knotting issues.

Common Mistakes To Avoid

Even experienced operators can make mistakes. Here are some common errors and how to avoid them:

1. Overlooking Twine Quality: Using low-quality twine can cause frequent breaks. Always choose durable twine.
2. Ignoring Knotter Cleaning: Debris buildup can lead to malfunctions. Clean the knotter regularly.
3. Incorrect Adjustments: Improperly adjusted knotters can cause loose or failed knots. Follow the manufacturer’s guidelines for adjustments.

Avoiding these common mistakes will help maintain the knotter’s efficiency and extend its lifespan.

Conclusion

Fixing a square baler knotter can seem challenging. But with these tips, you can address common issues. Regular maintenance is key. Check for worn parts often. Clean the knotter to avoid jams. Inspect the twine tension regularly. With patience and care, you can keep your baler working smoothly.

Remember, troubleshooting takes practice. Stay persistent and your efforts will pay off. Happy baling!
